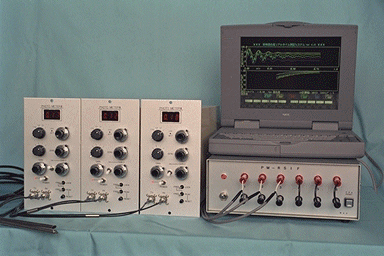

The system consists of the PHOTO METER, a computer and its interface, and the software.

The PHOTO METER has been specifically developed to measure powder's mixture with optical method.

■ This system will present you all information of powder mixture.

■ This system can use not only desktop-type computer but also note-type computer.

■ This system can measure mixture of same color's powder by our PHOTO METER(ＰＭ−�V).

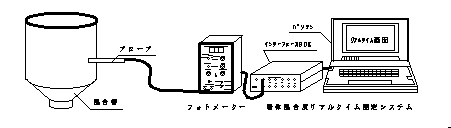

○ This system can measure and analyze powder's mixture
　　　　 on real time data.

　　　Graphic display of degree of Powder's mixture.
　　　Graphic display of FFT analysis.
　　　Measuring-intervals can be set in the range
　　　　 from 10mSec to 300 Sec.

---

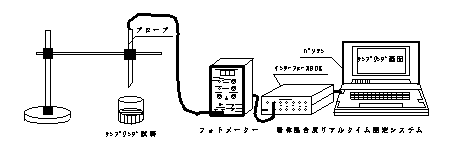

○ This system can measure and analyze powder's mixture
　　　　 on sampling data.

---

○ This system have a function for modify from measure data
　　　　 to density data.

○ This system have a function for adjust of PHOTO METER.

○ This system have a function for disk utility

○ This system have a function for change the word
　　　　 on crt display , the word on printout.

　　　computer: NEC PC9800
　　　os　　　: MS-DOS Ver3.3〜
　　　printer : NEC PC-PR201 type

There is 2 type interface box.

　　(1)board type
　　　　　interface box(PM-IF)
　　　　　board adupt to PC9800

　　(2)RS232C type
　　　　　interface box(PM-RS-IF)
　　　　　cable for RS232C

Both type interface box have 6 channel input terminal
　　　　 (analog voltage:DC 0 - 5 V).

Both type interface box be supplies from power source voltage
　　　　 (AC 100V) .
